BAS516,315
Manufacturer
Nexperia
Description

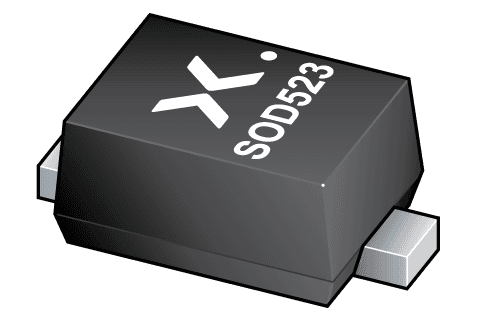

Rectifier Diode Switching 100V 0.25A 4ns Automotive 2-Pin SOD-523 T/R
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Average Rectified Current
Capacitance
Contact Plating
Element Configuration
Forward Current
Forward Voltage
Height
Lifecycle Status
Manufacturer Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Pins
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
Reverse Recovery Time
Reverse Voltage
RoHS
Schedule B
Description
150 °C
250 mA
1 pF
Tin
Single
250 mA
1.25 V
650 µm
Production (Last Updated: 1 day ago)
RELEASED FOR SUPPLY (Last Updated: 1 day ago)
500 mA
150 °C
150 °C
100 V
100 V
-65 °C
Surface Mount
2
Tape & Reel (TR)
4 A
500 nA
No
4 ns
100 V
Compliant
8541100070
