BAS40W-04-7-F
Manufacturer
Diodes Inc.
Description

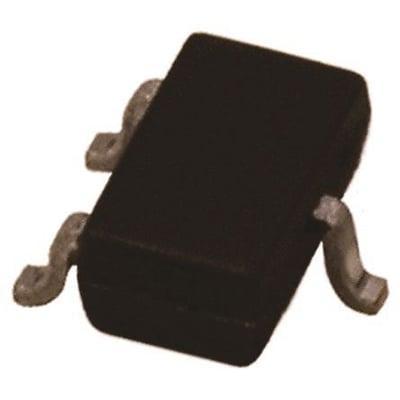

BAS40W Series 40 V 600 mA Surface Mount Schottky Barrier Diode - SOT-323
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
Case/Package
Contact Plating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Pins
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Power Dissipation
Power Rating
Radiation Hardening
Reverse Recovery Time
RoHS
Schedule B
Termination
Weight
Width
Description
200 mA
5 pF
SOT-323
Tin
Single
200 mA
1 V
1 mm
Lead Free
2.2 mm
600 mA
125 °C
200 mW
40 V
40 V
-65 °C
Surface Mount
3
Cut Tape
600 mA
200 nA
200 mW
200 mW
No
5 ns
Compliant
8541100070, 8541100070|8541100070|8541100070|8541100070|8541100070
SMD/SMT
6.010099 mg
1.35 mm
