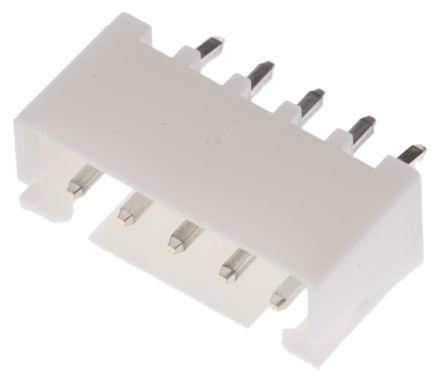

B5B-XH-A(LF)(SN)
Manufacturer
JST
Description
Connector Header, XH Series, 5 Position, 2.50mm, Through Hole, Press-Fit, Solder, Natural
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Material
Contact Plating
Contact Resistance
Current Rating
Depth
Fastening Type
Gender
Height
Housing Color
Housing Material
Insulation Resistance
Lead Free
Lead Pitch
Length
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Orientation
Pitch
REACH SVHC
RoHS
Termination
Voltage Rating
Voltage Rating (AC)
Weight
Width
Wire/Cable Gauge
Description
Natural
Male Pin
Brass
Copper, Lead, Tin
20 mΩ
3 A
5.75 mm
Detent
Male
13.208 mm
White
Polyamide
1 GΩ
Lead Free
2.5 mm
14.9 mm
3 A
85 °C
250 V
-25 °C
Through Hole
5
5
1
Straight
2.5 mm
No SVHC
Compliant
Press-Fit, Solder
250 V
250 V
28.349523 g
13.208 mm
22 AWG
In Stock
Quantity
MOQ : 5
Per Unit Price
₹23.12
Total Price
₹115.59
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹115.59
₹115.59
10
₹18.23
₹182.29
25
₹18.26
₹456.60
50
₹18.23
₹911.43
100
₹14.93
₹1492.97
500
₹14.93
₹7465.72
1000
₹12.05
₹12052.22
Product Attributes
