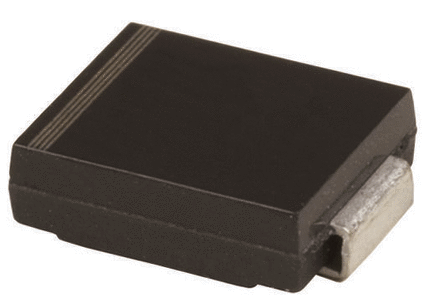

B530C-13-F
Manufacturer
Diodes Inc.
Description
Rectifier Diode, Schottky, 1 Phase, 1 Element, 5A, 30V V(RRM), Silicon
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
Case/Package
Contact Plating
Current Rating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Pins
Output Current
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Polarity
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Termination
Voltage Rating (DC)
Weight
Width
Description
5 A
300 pF
SMC
Tin
5 A
Single
5 A
550 mV
2.3 mm
Lead Free
7.11 mm
100 A
125 °C
30 V
30 V
-55 °C
Surface Mount
2
5 A
Tape and Reel
100 A
500 µA
Standard
No
No SVHC
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
SMD/SMT
30 V
210.013267 mg
6.22 mm
