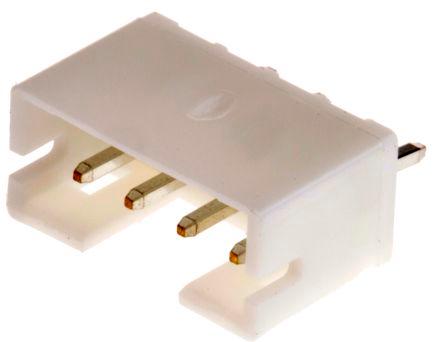

B4B-PH-K-S(LF)(SN)
Manufacturer
JST
Description
Connector Header, PH Series, 4 Position, 2.00mm, Solder, Through Hole, Tin, Natural
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Material
Contact Mating Length
Contact Plating
Contact Resistance
Current Rating
Depth
Fastening Type
Gender
Height
Housing Color
Housing Material
Insulation Resistance
Lead Free
Lead Pitch
Length
Material
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Poles
Number of Positions
Number of Rows
Orientation
Packaging
Pitch
REACH SVHC
RoHS
Schedule B
Termination
Voltage Rating
Voltage Rating (AC)
Voltage Rating (DC)
Weight
Width
Working Voltage
Description
Natural
Male Pin
Brass
3.302 mm
Tin
10 mΩ
2 A
4.5 mm
Detent
Female
6 mm
Natural
Nylon
1 MΩ
Lead Free
2 mm
9.9 mm
Polyamide
2 A
85 °C
100 V
100 V
-25 °C
Through Hole
4
4
4
4
1
Straight
Bulk
2 mm
No SVHC
Compliant
8536694040
Solder
100 V
100 V
100 V
28.349523 g
4.5 mm
100 V
