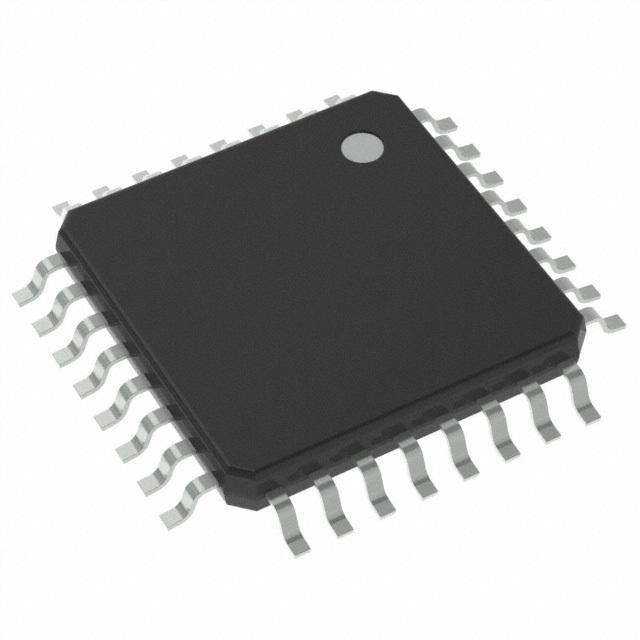

ATXMEGA8E5-AU
Manufacturer
Microchip
Description
MCU 8-Bit/16-Bit XMEGA AVR RISC 10KB Flash 1.8V/2.5V/3.3V 32-Pin TQFP Tray
Datasheet
DownloadProduct Attributes
Type
Case/Package
Core Architecture
Data Bus Width
Data Rate
Frequency
Height
Interface
Length
Lifecycle Status
Max Frequency
Max Operating Temperature
Max Supply Voltage
Memory Size
Memory Type
Min Operating Temperature
Min Supply Voltage
Mount
Number of ADC Channels
Number of I/Os
Number of Pins
Number of PWM Channels
Number of Timers/Counters
Oscillator Type
Peripherals
RAM Size
REACH SVHC
RoHS
Schedule B
Width
Description
TQFP
AVR
8 b
115.2 kbps
32 MHz
1.05 mm
2-Wire, I2C, IrDA, SPI, UART, USART
7.1 mm
Production (Last Updated: 2 years ago)
32 MHz
85 °C
3.6 V
8 kB
FLASH, SRAM
-40 °C
1.6 V
Surface Mount
16
26
32
16
3
Internal
Brown-out Detect/Reset, DMA, POR, PWM, WDT
1 kB
No SVHC
Compliant
8542310000
7.1 mm
