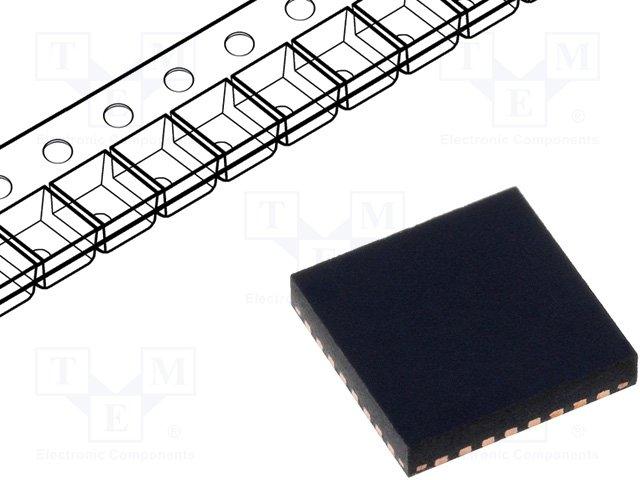

ATTINY861A-MU
Manufacturer
Microchip
Description
ATtiny Series 8 KB Flash 512 B SRAM 20 MHz 8-Bit Microcontroller - QFN-32
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Core Architecture
Country of Origin
Data Bus Width
Frequency
Height
Interface
Lead Free
Length
Lifecycle Status
Max Frequency
Max Operating Temperature
Max Supply Voltage
Memory Size
Memory Type
Min Operating Temperature
Min Supply Voltage
Mount
Number of ADC Channels
Number of I2C Channels
Number of I/Os
Number of Pins
Number of Programmable I/O
Number of SPI Channels
Number of Timers/Counters
Oscillator Type
Peripherals
Radiation Hardening
RAM Size
REACH SVHC
RoHS
Schedule B
Watchdog Timer
Width
Description
QFN
Tin
AVR
Philippines, Thailand
8 b
20 MHz
950 µm
SPI
Lead Free
5.1 mm
Production (Last Updated: 4 years ago)
20 MHz
85 °C
5.5 V
8 kB
FLASH
-40 °C
1.8 V
Surface Mount
11
1
16
32
16
1
2
Internal
Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT
No
512 B
No SVHC
Compliant
8542310000
Yes
5.1 mm
