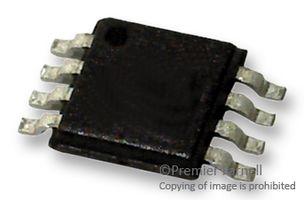

ATTINY85-20SH
Manufacturer
Microchip
Description
AVR, 4KB FLASH, 256B SRAM, ADC, 2 TIMERS - 20MHz, EIAJ SOIC, Ind Temp Green NiPd
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Core Architecture
Data Bus Width
Frequency
Height
Interface
Length
Lifecycle Status
Max Frequency
Max Operating Temperature
Max Supply Voltage
Memory Size
Memory Type
Manufacturer Package Identifier
Min Operating Temperature
Min Supply Voltage
Mount
Number of ADC Channels
Number of I2C Channels
Number of I/Os
Number of Pins
Number of Programmable I/O
Number of PWM Channels
Number of SPI Channels
Number of Timers/Counters
Operating Supply Voltage
Oscillator Type
Peripherals
RAM Size
REACH SVHC
RoHS
Schedule B
Watchdog Timer
Width
Description
SOIC
Tin
AVR
8 b
20 MHz
2.16 mm
SPI
5.35 mm
Production (Last Updated: 2 years ago)
20 MHz
85 °C
5.5 V
8 kB
FLASH
8S2
-40 °C
2.7 V
Surface Mount
4
1
6
8
6
2
1
2
5 V
Internal
Brown-out Detect/Reset, POR, PWM, WDT
512 B
No SVHC
Compliant
8542310000
Yes
5.4 mm
