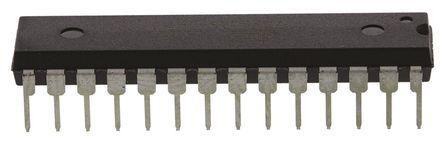

ATMEGA8-16PU
Manufacturer
Microchip
Description
ATMEGA8-16PU, 8bit AVR Microcontroller, 16MHz, 8 kB, 512 B Flash, 28-Pin PDIP
Datasheet
DownloadProduct Attributes
Type
Access Time
Address Bus Width
Case/Package
Contact Plating
Core Architecture
Data Bus Width
Density
Frequency
Height
Interface
Lead Free
Length
Lifecycle Status
Max Frequency
Max Operating Temperature
Max Supply Voltage
Memory Size
Memory Type
Min Operating Temperature
Min Supply Voltage
Mount
Number of ADC Channels
Number of Bits
Number of I2C Channels
Number of I/Os
Number of Pins
Number of Programmable I/O
Number of PWM Channels
Number of SPI Channels
Number of Timers/Counters
Operating Supply Voltage
Oscillator Type
Peripherals
Radiation Hardening
RAM Size
REACH SVHC
RoHS
Watchdog Timer
Width
Description
16 µs
8 b
PDIP
Tin
AVR
8 b
64 kb
16 MHz
4.064 mm
2-Wire, I2C, SPI, UART, USART
Lead Free
34.8 mm
Production (Last Updated: 2 years ago)
16 MHz
85 °C
5.5 V
8 kB
EEPROM, FLASH
-40 °C
4.5 V
Through Hole
6
8
1
23
28
23
3
1
3
5 V
Internal
Brown-out Detect/Reset, POR, PWM, WDT
No
1 kB
No SVHC
Compliant
Yes
7.493 mm
