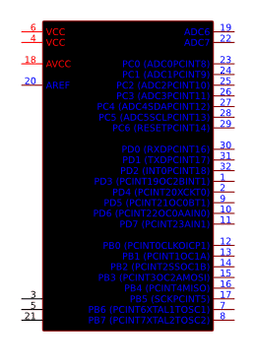

ATMEGA168PA-AU
Manufacturer
Microchip
Description
Risc Microcontroller, 8-BIT, Flash, AVR Risc Cpu, 20MHZ, Cmos, PQFP32
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Core Architecture
Country of Origin
Data Bus Width
Density
Frequency
Height
Interface
Lead Free
Length
Lifecycle Status
Max Frequency
Max Operating Temperature
Max Supply Voltage
Memory Size
Memory Type
Min Operating Temperature
Min Supply Voltage
Mount
Number of ADC Channels
Number of I2C Channels
Number of I/Os
Number of Pins
Number of Programmable I/O
Number of PWM Channels
Number of SPI Channels
Number of Timers/Counters
Oscillator Type
Peripherals
Radiation Hardening
RAM Size
REACH SVHC
RoHS
Schedule B
Termination
Watchdog Timer
Width
Description
TQFP
Tin
AVR
Thailand
8 b
128 kb
20 MHz
1.05 mm
2-Wire, I2C, SPI, UART, USART
Lead Free
7 mm
Production (Last Updated: 4 years ago)
20 MHz
85 °C
5.5 V
16 kB
FLASH
-40 °C
1.8 V
Surface Mount
8
1
23
32
23
6
1
3
Internal
Brown-out Detect/Reset, POR, PWM, WDT
No
1 kB
No SVHC
Compliant
8542310000, 8542310000|8542310000|8542310000|8542310000|8542310000
SMD/SMT
Yes
7 mm
