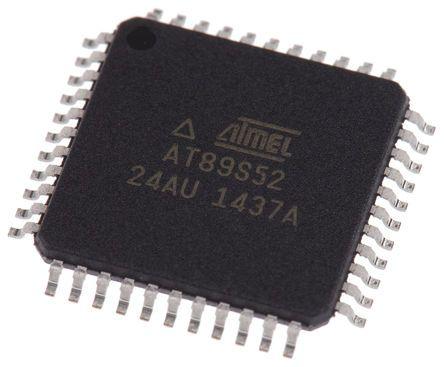

AT89S52-24AU
Manufacturer
Microchip
Description
Microcontroller AT89; 8 Bit 80C51; 24MHZ; Flash 8KB; SRAM 256B; 4-5.5V; -40+85DEG.C; TQFP44
Datasheet
DownloadProduct Attributes
Type
Access Time
Address Bus Width
Case/Package
Core Architecture
Country of Origin
Data Bus Width
Density
Frequency
Height
Interface
Lead Free
Length
Lifecycle Status
Max Frequency
Max Operating Temperature
Max Supply Voltage
Memory Size
Memory Type
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Bits
Number of I/Os
Number of Pins
Number of Programmable I/O
Number of Timers/Counters
Number of UART Channels
Operating Supply Voltage
Oscillator Type
Peripherals
Radiation Hardening
RAM Size
REACH SVHC
RoHS
Schedule B
Termination
Watchdog Timer
Width
Description
24 µs
8 b
TQFP
80C51
Taiwan, Thailand
8 b
64 kb
24 MHz
1.2 mm
UART
Lead Free
10.1 mm
Production (Last Updated: 4 years ago)
24 MHz
85 °C
5.5 V
8 kB
FLASH
-40 °C
4 V
Surface Mount
25 mA
8
32
44
32
3
1
5 V
Internal
WDT
No
256 B
No SVHC
Compliant
8542310000, 8542310000|8542310000|8542310000|8542310000|8542310000
SMD/SMT
Yes
10.1 mm
