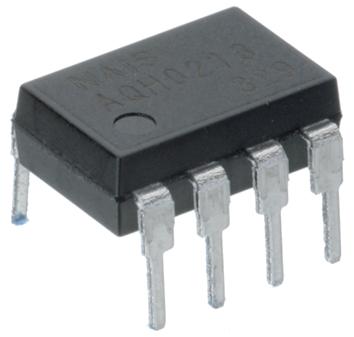

AQH3223
Manufacturer
Panasonic
Description
Relay SSR 50mA 1.3V DC-IN 1.2A 600V AC-OUT 8-Pin PDIP Tube
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Approvals
Case/Package
Depth
Forward Current
Height
Input Current
Isolation Voltage
Lead Free
Length
Load Current
Max Forward Surge Current (Ifsm)
Max Input Current
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Voltage
Max Supply Voltage (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Operating Supply Voltage
Output Current
Output Voltage
REACH SVHC
Relay Type
RMS Current (Irms)
RoHS
Termination
Test Voltage
Throw Configuration
Description
85 °C
VDE, cULus
DIP
6.4 mm
50 mA
4.1 mm
25 mA
5 kV
Lead Free
9.78 mm
1.2 A
12 A
50 mA
125 °C
85 °C
600 V
600 V
-30 °C
PCB, Through Hole
1
8
600 V
1.2 A
600 V
Unknown
Relay
1.2 A
Compliant
PC Pin
5 kV
SPST
