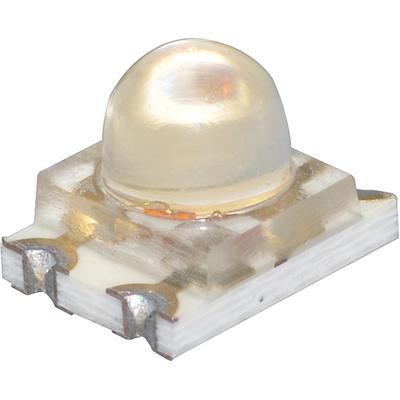

APBD3224ESGC-F01
Manufacturer
Kingbright
Description
LED Bi-Color Green/Red 565nm/627nm 4-Pin Chip LED T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Color
Dominant Wavelength
Forward Current
Forward Voltage
Height
Illumination Color
Lead Free
Length
Lens Color
Lens Style
Luminous Intensity
Max Operating Temperature
Min Operating Temperature
Mount
Number of LEDs
Number of Pins
Packaging
Power Rating
Reverse Voltage
RoHS
Schedule B
Test Current
Viewing Angle
Wavelength
Width
Description
1210
1210
3225
Green, Red
625 nm
20 mA
2.2 V
2.4 mm
Green, Red
Lead Free
3.2 mm
Clear
Clear, Dome, Round
55 mcd
85 °C
-40 °C
Surface Mount
1
4
Tape & Reel (TR)
62.5 mW
5 V
Compliant
8541402000, 8541402000|8541402000|8541402000|8541402000|8541402000
20 mA
20 °
617 nm
2.4 mm
