AP6503SP-13
Manufacturer
Diodes Inc.
Description

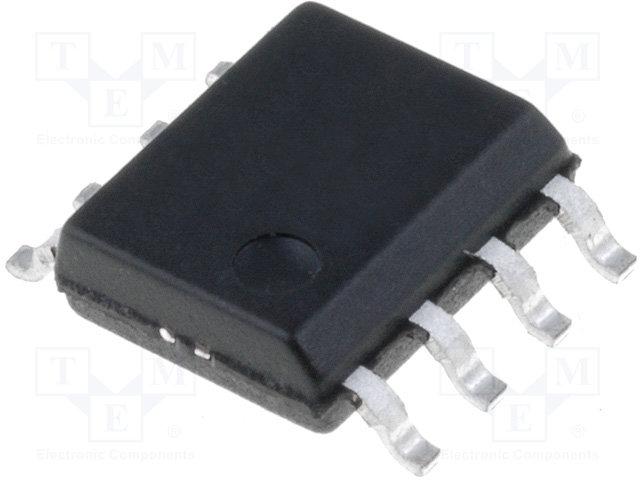

AP6503 Series 3 A 340 kHz Synchronous Buck DC-DC Converter - SOIC-8EP
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Case/Package
Contact Plating
Efficiency
Height
Lead Free
Length
Max Duty Cycle
Max Input Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Output Voltage
Max Supply Voltage
Min Input Voltage
Min Operating Temperature
Min Output Voltage
Min Supply Voltage
Mount
Nominal Supply Current
Number of Outputs
Number of Pins
Operating Supply Current
Operating Supply Voltage
Output Configuration
Output Current
Output Type
Output Voltage
Packaging
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Switching Frequency
Synchronous Rectifier
Width
Description
85 °C
SOIC
Tin
95 %
1.37 mm
Lead Free
4.95 mm
90 %
23 V
150 °C
85 °C
4 A
20 V
23 V
4.7 V
-40 °C
925 mV
4.7 V
Surface Mount
600 µA
1
8
600 µA
23 V
Positive
3 A
Adjustable
20 V
Tape and Reel
No
No SVHC
Compliant
8542390000
340 kHz
Yes
3.95 mm
Product Attributes
Type
Ambient Temperature Range High
Case/Package
Contact Plating
Efficiency
Height
Lead Free
Length
Max Duty Cycle
Max Input Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Output Voltage
Max Supply Voltage
Min Input Voltage
Min Operating Temperature
Min Output Voltage
Min Supply Voltage
Mount
Nominal Supply Current
Number of Outputs
Number of Pins
Operating Supply Current
Operating Supply Voltage
Output Configuration
Output Current
Output Type
Output Voltage
Packaging
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Switching Frequency
Synchronous Rectifier
Width
Description
85 °C
SOIC
Tin
95 %
1.37 mm
Lead Free
4.95 mm
90 %
23 V
150 °C
85 °C
4 A
20 V
23 V
4.7 V
-40 °C
925 mV
4.7 V
Surface Mount
600 µA
1
8
600 µA
23 V
Positive
3 A
Adjustable
20 V
Tape and Reel
No
No SVHC
Compliant
8542390000
340 kHz
Yes
3.95 mm
