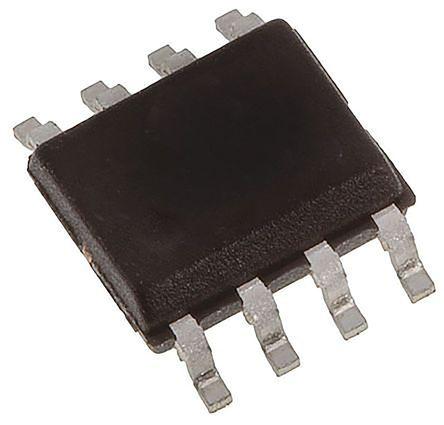

AP3513EMPTR-G1
Manufacturer
Diodes Inc.
Description
AP3513E Series 18 V 3 A 500 kHz Synchronous DCDC Buck Converter - SOIC-8EP
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Case/Package
Efficiency
Height
Lead Free
Length
Max Duty Cycle
Max Input Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Output Voltage
Max Supply Voltage
Min Input Voltage
Min Operating Temperature
Min Output Voltage
Min Supply Voltage
Mount
Nominal Supply Current
Number of Outputs
Number of Pins
Operating Supply Voltage
Output Configuration
Output Current
Output Type
Packaging
RoHS
Schedule B
Switching Frequency
Synchronous Rectifier
Width
Description
85 °C
SOIC
93 %
1.55 mm
Lead Free
5.1 mm
90 %
18 V
150 °C
85 °C
3 A
16.2 V
18 V
4.5 V
-40 °C
925 mV
4.5 V
Surface Mount
1.2 mA
1
8
18 V
Positive
3 A
Adjustable
Tape & Reel (TR)
Compliant
8542390000
500 kHz
Yes
4 mm
Product Attributes
Type
Ambient Temperature Range High
Case/Package
Efficiency
Height
Lead Free
Length
Max Duty Cycle
Max Input Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Output Voltage
Max Supply Voltage
Min Input Voltage
Min Operating Temperature
Min Output Voltage
Min Supply Voltage
Mount
Nominal Supply Current
Number of Outputs
Number of Pins
Operating Supply Voltage
Output Configuration
Output Current
Output Type
Packaging
RoHS
Schedule B
Switching Frequency
Synchronous Rectifier
Width
Description
85 °C
SOIC
93 %
1.55 mm
Lead Free
5.1 mm
90 %
18 V
150 °C
85 °C
3 A
16.2 V
18 V
4.5 V
-40 °C
925 mV
4.5 V
Surface Mount
1.2 mA
1
8
18 V
Positive
3 A
Adjustable
Tape & Reel (TR)
Compliant
8542390000
500 kHz
Yes
4 mm
