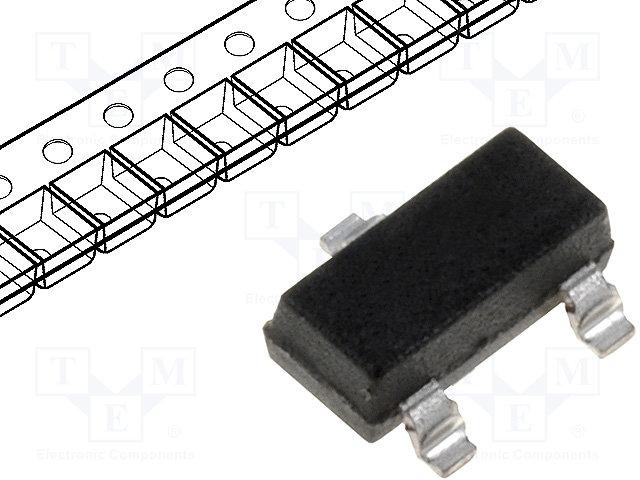

AO3401A
Manufacturer
Alpha & Omega Semiconductor
Description
Trans Mosfet P-ch 30V 4A 3-PIN SOT-23 T/r
Datasheet
DownloadProduct Attributes
Type
Case/Package
Continuous Drain Current (ID)
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Lifecycle Status
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Channels
Number of Elements
Number of Pins
Power Dissipation
Radiation Hardening
Rds On Max
RoHS
Schedule B
Threshold Voltage
Turn-Off Delay Time
Turn-On Delay Time
Description
TO-236-3
-4 A
-30 V
41 mΩ
-30 V
12 V
1.25 mm
1.2 nF
Lead Free
NRND (Last Updated: 2 years ago)
150 °C
150 °C
1.4 W
-55 °C
Surface Mount
1
1
3
1.4 W
No
44 mΩ
Compliant
8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080
-900 mV
41 ns
6.5 ns
