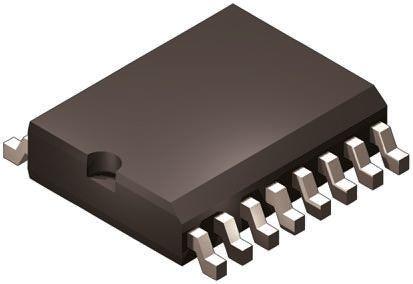

ADUM1301CRWZ
Manufacturer
Analog Devices
Description
Digital Isolator CMOS 3-CH 120Mbps Automotive 16-Pin SOIC W Tube
Datasheet
DownloadProduct Attributes
Type
Case/Package
Channel Type
Data Rate
Depth
Isolation Voltage
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Input Current
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Nominal Supply Current
Number of Channels
Number of Pins
Operating Supply Current
Operating Supply Voltage
Output Current
Packaging
Propagation Delay
Radiation Hardening
REACH SVHC
Rise Time
RoHS
Schedule B
Turn-On Delay Time
Type
Width
Description
SOIC
Unidirectional
90 Mbps
2.35 mm
2.5 kV
Contains Lead
10.5 mm
Production (Last Updated: 1 month ago)
PRODUCTION (Last Updated: 1 month ago)
10 µA
125 °C
5.5 V
-40 °C
2.7 V
8.2 mA
3
16
8.2 mA
5 V
30 mA
Bulk
32 ns
No
No SVHC
3 ns
Compliant
8543709655
32 ns
General Purpose
7.6 mm
