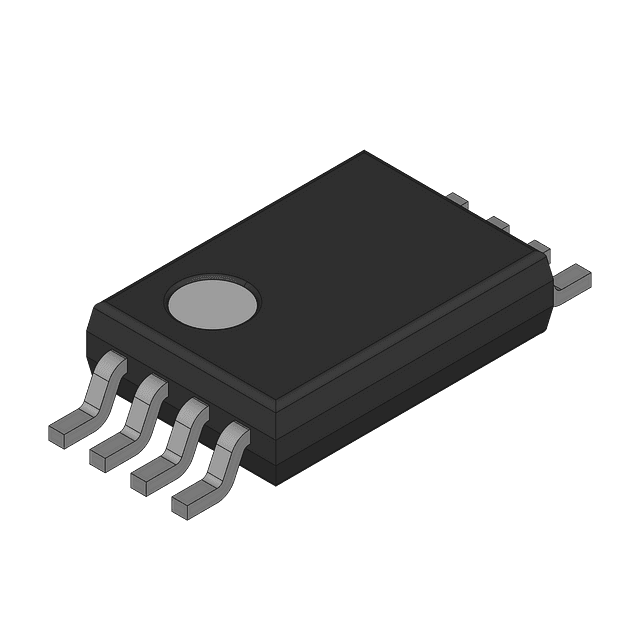

ADM485ARMZ-REEL7
Manufacturer
Analog Devices
Description
Single Transmitter/Receiver RS-422/RS-485 8-Pin MSOP T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Data Rate
ESD Protection
Lead Free
Lifecycle Status
Logic Function
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Current
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Drivers
Number of Pins
Number of Receivers
Number of Transceivers
Number of Transmitters
Operating Supply Current
Operating Supply Voltage
Packaging
Receiver Hysteresis
RoHS
Schedule B
Simplex/Duplex
Weight
Description
MSOP
Tin
5 Mbps
Yes
Contains Lead
Production (Last Updated: 1 month ago)
Transceiver
PRODUCTION (Last Updated: 1 month ago)
85 °C
2.2 mA
5.25 V
-40 °C
4.75 V
Surface Mount
2.2 mA
1
8
1
1
1
2.2 mA
5 V
Tape and Reel
70 mV
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
Half Duplex
139.989945 mg
