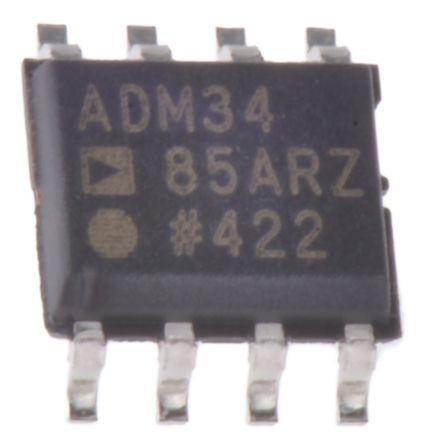

ADM3485ARZ-REEL7
Manufacturer
Analog Devices
Description
Single Transmitter/Receiver RS-422/RS-485 8-Pin SOIC N T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Data Rate
Height
Lead Free
Length
Lifecycle Status
Logic Function
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Nominal Supply Current
Number of Drivers
Number of Pins
Number of Receivers
Number of Transceivers
Number of Transmitters
Operating Supply Current
Operating Supply Voltage
Output Current
Output Voltage
Packaging
Propagation Delay
Receiver Hysteresis
RoHS
Schedule B
Simplex/Duplex
Weight
Width
Description
SOIC
10 Mbps
1.5 mm
Lead Free
5 mm
Production (Last Updated: 1 month ago)
Transceiver
PRODUCTION (Last Updated: 1 month ago)
85 °C
3.6 V
-40 °C
3 V
2.2 mA
1
8
1
1
1
2.2 mA
3.3 V
250 mA
2 V
Tape and Reel
35 ns
50 mV
Compliant
8542390000, 8542390000|8542390000, 8542390000|8542390000|8542390000, 8542390000|8542390000|8542390000|8542390000
Half Duplex
540.001716 mg
4 mm
