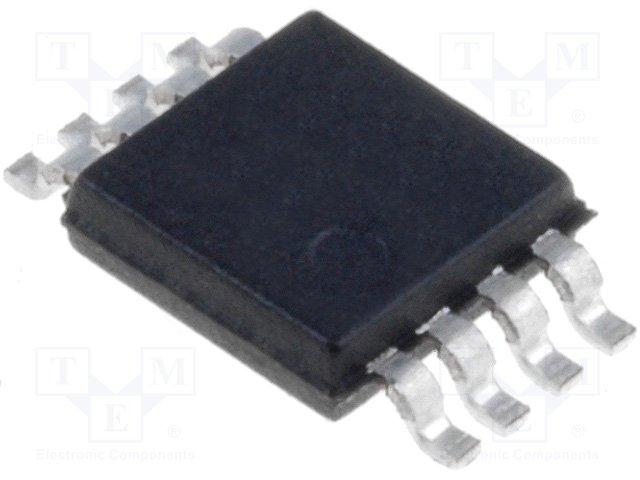

AD8066ARMZ
Manufacturer
Analog Devices
Description
Op Amp Dual High Performance Amplifier R-R O/P 12V/24V 8-Pin MSOP Tube
Datasheet
DownloadProduct Attributes
Type
-3db Bandwidth
Bandwidth
Case/Package
Common Mode Rejection Ratio
Contact Plating
Dual Supply Voltage
Gain
Gain Bandwidth Product
Height
Input Bias Current
Input Capacitance
Input Offset Voltage (Vos)
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Dual Supply Voltage
Max Operating Temperature
Max Supply Voltage
Min Dual Supply Voltage
Min Operating Temperature
Min Supply Voltage
Nominal Supply Current
Number of Amplifiers
Number of Channels
Number of Circuits
Number of Elements
Number of Pins
Operating Supply Current
Output Current
Output Current per Channel
Power Supply Rejection Ratio (PSRR)
Quiescent Current
REACH SVHC
RoHS
Schedule B
Settling Time
Slew Rate
Voltage Gain
Width
Description
145 MHz
130 MHz
MSOP
100 dB
Tin
9 V
1 dB
60 MHz
850 µm
2 pA
2.1 pF
1.5 mV
Contains Lead
3 mm
Production (Last Updated: 1 month ago)
PRODUCTION (Last Updated: 1 month ago)
12 V
85 °C
24 V
2.5 V
-40 °C
5 V
14.8 mA
2
2
2
2
8
14.8 mA
35 mA
30 mA
100 dB
7.4 mA
No SVHC
Compliant
8542330000
55 ns
180 V/µs
103 dB
3 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹662.82
Total Price
₹662.82
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹662.82
₹662.82
10
₹523.61
₹5236.05
25
₹523.60
₹13090.11
50
₹466.21
₹23310.38
100
₹428.15
₹42814.98
500
₹384.15
₹192072.54
1000
₹383.43
₹383431.93
