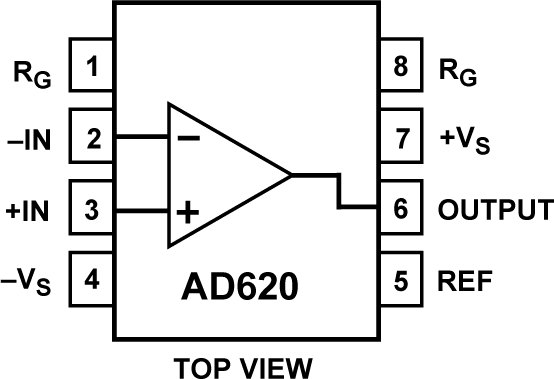

AD620ANZ
Manufacturer
Analog Devices
Description
Instrumentation Amplifier, 1 Func, 150uV Offset-Max, 1MHz Band Width, PDIP8
Datasheet
DownloadProduct Attributes
Type
-3db Bandwidth
Bandwidth
Case/Package
Common Mode Rejection Ratio
Contact Plating
Dual Supply Voltage
Gain Bandwidth Product
Height
Input Bias Current
Input Offset Voltage (Vos)
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Dual Supply Voltage
Max Operating Temperature
Max Power Dissipation
Max Supply Voltage
Min Dual Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Amplifiers
Number of Channels
Number of Circuits
Number of Elements
Number of Pins
Operating Supply Current
Output Current per Channel
Power Dissipation
Power Supply Rejection Ratio (PSRR)
Radiation Hardening
REACH SVHC
Resistance
RoHS
Schedule B
Slew Rate
Voltage Gain
Width
Description
1 MHz
1 MHz
DIP
93 dB
Tin
15 V
1 MHz
3.3 mm
2 nA
30 mV
9.27 mm
Production (Last Updated: 2 years ago)
PRODUCTION (Last Updated: 2 years ago)
18 V
85 °C
650 mW
18 V
2.3 V
-40 °C
4.6 V
Through Hole
1
1
1
1
8
1.3 mA
18 mA
650 mW
140 dB
No
No SVHC
10 GΩ
Compliant
8542330000, 8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|8542330000|85
1.2 V/µs
80 dB
6.35 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹1638.80
Total Price
₹1638.80
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹1638.80
₹1638.80
10
₹1151.69
₹11516.92
25
₹1151.71
₹28792.74
50
₹946.91
₹47345.45
100
₹896.74
₹89674.04
500
₹992.36
₹496178.05
