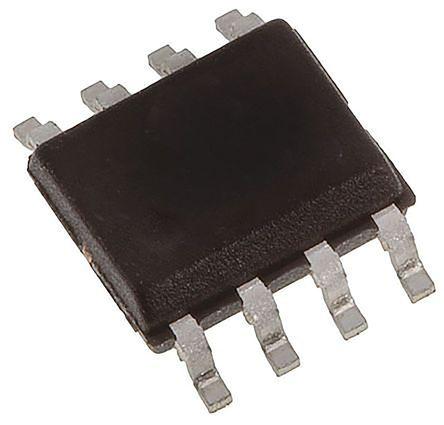

ACS723LLCTR-20AB-T
Manufacturer
Allegro MicroSystems
Description
High Accuracy, Galvanically Isolated Current Sensor IC With Small Footprint SOIC8 Package
Datasheet
DownloadProduct Attributes
Type
Accuracy
Ambient Temperature Range High
Bandwidth
Case/Package
Coil Resistance
Current Sensing
Frequency
Height
Length
Linearity
Max Input Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Supply Current
Max Supply Voltage
Min Input Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Channels
Number of Pins
Operating Supply Current
Packaging
Polarity
Response Time
RoHS
Sensing Method
Sensitivity (mV/A)
Width
Description
2 %
150 °C
80 kHz
SOIC
650 µΩ
20 A
80 kHz
1.5 mm
4.9 mm
1 %
5.5 V
165 °C
150 °C
14 mA
5.5 V
4.5 V
-40 °C
4.5 V
Surface Mount
1
8
9 mA
Tape & Reel (TR)
Bidirectional
5 µs
Compliant
Hall Effect
100 mV/A
3.9 mm
Product Attributes
Type
Accuracy
Ambient Temperature Range High
Bandwidth
Case/Package
Coil Resistance
Current Sensing
Frequency
Height
Length
Linearity
Max Input Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Supply Current
Max Supply Voltage
Min Input Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Channels
Number of Pins
Operating Supply Current
Packaging
Polarity
Response Time
RoHS
Sensing Method
Sensitivity (mV/A)
Width
Description
2 %
150 °C
80 kHz
SOIC
650 µΩ
20 A
80 kHz
1.5 mm
4.9 mm
1 %
5.5 V
165 °C
150 °C
14 mA
5.5 V
4.5 V
-40 °C
4.5 V
Surface Mount
1
8
9 mA
Tape & Reel (TR)
Bidirectional
5 µs
Compliant
Hall Effect
100 mV/A
3.9 mm
