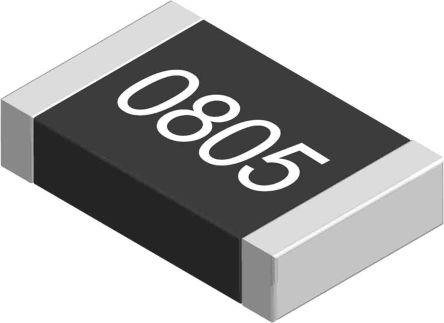

AC0805FR-0710KL
Manufacturer
Yageo
Description
Res Thick Film 0805 10K Ohm 1% 0.125W(1/8W) 100ppm/C Pad SMD Automotive T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Depth
Features
Height
Lead Free
Length
Max Operating Temperature
Max Power Dissipation
Military Standard
Min Operating Temperature
Number of Terminations
Packaging
Power Rating
Resistance
RoHS
Schedule B
Temperature Coefficient
Termination
Tolerance
Voltage Rating
Width
Description
0805
0805
2012
Thick Film
1.25 mm
Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
600 µm
Lead Free
2.0066 mm
155 °C
125 mW
Not
-55 °C
2
Tape & Reel
125 mW
10 kΩ
Compliant
8533210045, 8533210045|8533210045, 8533210045|8533210045|8533210045, 8533210045|8533210045|8533210045|8533210045
100 ppm/°C
SMD/SMT
1 %
150 V
1.2446 mm
