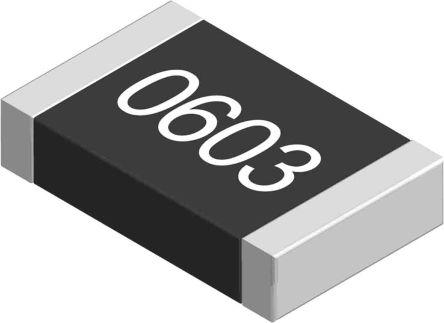

AC0603JR-072K2L
Manufacturer
Yageo
Description
Res Thick Film 0603 2.2K Ohm 5% 1/10W 100ppm/C Molded SMD SMD Paper T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Contact Plating
Features
Height
Lead Free
Length
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Number of Terminations
Packaging
Power Rating
Radiation Hardening
Resistance
RoHS
Schedule B
Temperature Coefficient
Termination
Tolerance
Voltage Rating
Width
Description
0603
0603
1608
Thick Film
Tin
Automotive AEC-Q200, Moisture Resistant
558.8 µm
Lead Free
1.6002 mm
155 °C
100 mW
-55 °C
2
Tape & Reel
100 mW
No
2.2 kΩ
Compliant
8533210045, 8533210045|8533210045, 8533210045|8533210045|8533210045, 8533210045|8533210045|8533210045|8533210045
100 ppm/°C
SMD/SMT
5 %
50 V
800 µm
