AC0603FR-072K2L
Manufacturer
Yageo
Description

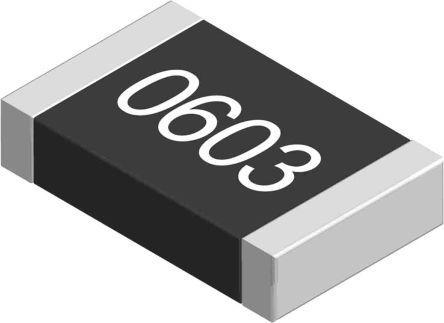

SMD Chip Resistor, 2.2 kOhm, 1%, 100 mW, 0603 [1608 Metric], Thick Film, General Purpose
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Depth
Features
Height
Lead Free
Length
Max Operating Temperature
Max Power Dissipation
Military Standard
Min Operating Temperature
Number of Terminations
Packaging
Power Rating
Resistance
RoHS
Schedule B
Temperature Coefficient
Termination
Tolerance
Voltage Rating
Width
Description
0603
0603
1608
Thick Film
800 µm
Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
550 µm
Lead Free
1.6002 mm
155 °C
100 mW
Not
-55 °C
2
Tape & Reel
100 mW
2.2 kΩ
Compliant
8533210045, 8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|8533210045|85
100 ppm/°C
SMD/SMT
1 %
75 V
787.4 µm
