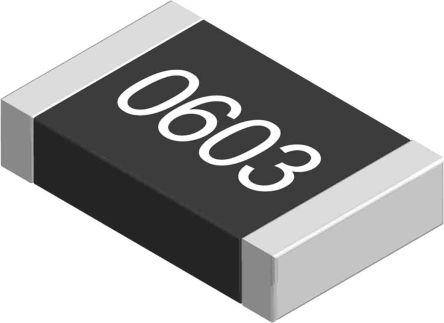

AC0603FR-07100RL
Manufacturer
Yageo
Description
Res Thick Film 0603 100 Ohm 1% 1/10W 100ppm/C Molded SMD SMD Paper T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Contact Plating
Depth
Features
Height
Lead Free
Length
Max Operating Temperature
Max Power Dissipation
Military Standard
Min Operating Temperature
Number of Terminations
Packaging
Power Rating
Radiation Hardening
Resistance
RoHS
Schedule B
Temperature Coefficient
Termination
Tolerance
Voltage Rating
Weight
Width
Description
0603
0603
1608
Thick Film
Tin
800 µm
Automotive AEC-Q200, Moisture Resistant
550 µm
Lead Free
1.6 mm
155 °C
100 mW
Not
-55 °C
2
Tape & Reel
100 mW
No
100 Ω
Compliant
8533210045, 8533210045|8533210045, 8533210045|8533210045|8533210045, 8533210045|8533210045|8533210045|8533210045
100 ppm/°C
SMD/SMT
1 %
50 V
2.012816 mg
787.4 µm
