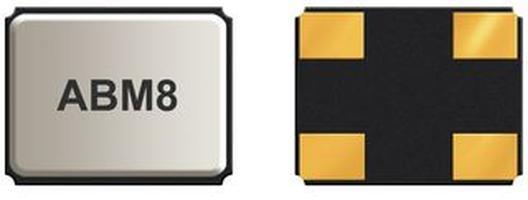

ABM8G-12.000MHZ-18-D2Y-T
Manufacturer
Abracon
Description
Crystal 12MHz 20ppm (Tol) 30ppm (Stability) 18pF FUND 120Ohm 4-Pin Ultra Mini-CSMD T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Depth
ESR (Equivalent Series Resistance)
Frequency
Frequency Stability
Frequency Tolerance
Height
Lead Free
Length
Lifecycle Status
Load Capacitance
Max Operating Temperature
Min Operating Temperature
Mount
Number of Pins
Packaging
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Series Resistance
Termination
Tolerance
Width
Description
CSMD
2.5 mm
120 Ω
12 MHz
30 ppm
0.002 %
1 mm
Lead Free
3.2 mm
Production (Last Updated: 4 years ago)
18 pF
85 °C
-40 °C
Surface Mount
4
Cut Tape
No
Unknown
Compliant
8541600025, 8541600025|8541600025|8541600025|8541600025|8541600025, 8541600080
120 Ω
SMD/SMT
0.002 %
2.5 mm
