A 20-LC-TT
Manufacturer
ASSMANN WSW Components
Description

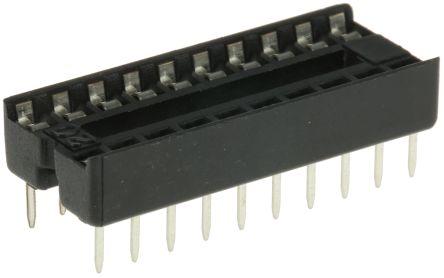

20 Pin Low Cost 2.54 mm Pitch IC Socket with Tin Plated Contacts
Datasheet
DownloadProduct Attributes
Type
Contact Material
Contact Plating
Contact Resistance
Current Rating
Depth
Flammability Rating
Height
Housing Material
Lead Free
Lead Length
Length
Material
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Orientation
Pitch
RoHS
Termination
Voltage Rating
Width
Description
Bronze
Tin
30 mΩ
1 A
5.1 mm
UL94 V-0
5.1 mm
PBT
Lead Free
3.1496 mm
25.4 mm
PBT
85 °C
-55 °C
Through Hole
20
20
Vertical
2.54 mm
Compliant
Solder
60 V
10.16 mm
In Stock
Quantity
MOQ : 3
Per Unit Price
₹43.57
Total Price
₹130.71
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹130.71
₹130.71
10
₹43.75
₹437.49
25
₹30.26
₹756.53
50
₹27.90
₹1394.84
100
₹26.62
₹2661.55
500
₹22.96
₹11480.91
1000
₹21.37
₹21369.25
