90131-0764
Manufacturer
Molex
Description

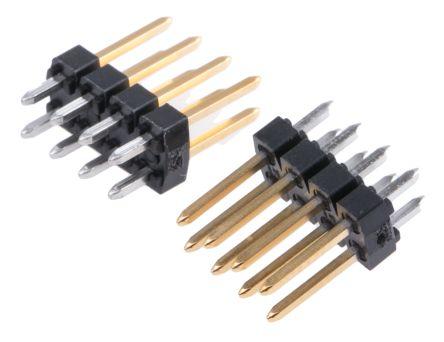

2.54mm Pitch C-Grid III Header, Dual Row, Vertical, 8 Circuits, 0.38m Gold (Au) Selective Plating
Datasheet
DownloadProduct Attributes
Type
Color
Contact Material
Contact Plating
Contact Resistance
Country of Origin
Current Rating
Gender
Housing Color
Housing Material
Insulation Resistance
Lead Free
Lead Pitch
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Min Operating Temperature
Mount
Number of Circuits
Number of Contacts
Number of Pins
Number of Poles
Number of Positions
Number of Rows
Orientation
Packaging
Pitch
Plating
Radiation Hardening
REACH SVHC
RoHS
Termination
Voltage Rating
Voltage Rating (AC)
Voltage Rating (DC)
Working Voltage
Description
Black
Brass
Gold
20 mΩ
SG
3 A
Male
Black
Polyester
5 GΩ
Lead Free
2.54 mm
Production (Last Updated: 2 years ago)
ACTIVE (Last Updated: 2 years ago)
125 °C
-55 °C
Through Hole
8
8
8
8
8
2
Vertical
Bulk
2.54 mm
Tin
No
Unknown
Compliant
Solder
350 V
350 V
350 V
350 V
