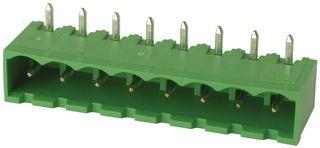

796638-8
Manufacturer
TE Connectivity
Description
Terminal Block; Header; 8; Single; 0.2 in.; Right Angle; 250 VAC; Tin; Green
Datasheet
DownloadProduct Attributes
Type
Approvals
Color
Connector System
Connector Type
Contact Material
Contact Plating
Current
Current Rating
Depth
ELV
Flammability Rating
Housing Color
Housing Material
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Levels
Number of Pins
Number of Poles
Number of Positions
Number of Positions Per Level
Number of Rows
Orientation
Packaging
Pitch
Plating Thickness
Radiation Hardening
REACH SVHC
RoHS
Shrouded
Tail Length
Termination
Voltage
Voltage Rating
Voltage Rating (AC)
Description
UL
Green
Wire-to-Board
Header
Bronze
Tin
15 A
15 A
12 mm
Compliant
UL94 V-0
Green
Polyamide
42.46 mm
Production (Last Updated: 1 day ago)
ACTIVE (Last Updated: 1 day ago)
15 A
105 °C
300 V
-40 °C
Through Hole
8
1
8
8
8
8
1
Right Angle
Bulk
5.08 mm
7 µm
No
Unknown
Compliant
Yes
3.5 mm
Solder
300 V
300 V
300 V
