78171-0002
Manufacturer
Molex
Description

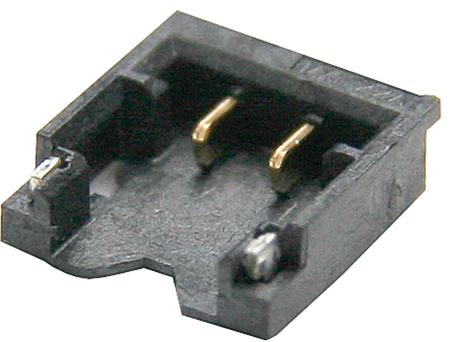

Pico-EZmate Wire-to-Board Header Vertical Housing Height 1.55mm with Side Friction Locks 2 Circuits
Datasheet
DownloadProduct Attributes
Type
Contact Gender
Contact Material
Contact Plating
Contact Resistance
Country of Origin
Current Rating
Gender
Glow Wire Compliant
Halogen Free
Housing Material
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Circuits
Number of Contacts
Number of Pins
Number of Positions
Number of Rows
Orientation
Packaging
Pitch
Plating
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Termination
Voltage Rating
Voltage Rating (AC)
Description
Female
Copper
Gold
20 mΩ
MY
1.5 A
Male
Non-compliant
Low Halogen
Liquid Crystal Polymer
Production (Last Updated: 2 years ago)
ACTIVE (Last Updated: 2 years ago)
85 °C
5.05 kV
-25 °C
Surface Mount
2
2
2
2
1
Vertical
Cut Tape
1.2 mm
Gold
No
Unknown
Compliant
8536694040, 8536694040|8536694040, 8536694040|8536694040|8536694040, 8536694040|8536694040|8536694040|8536694040
Solder
50 V
50 V
