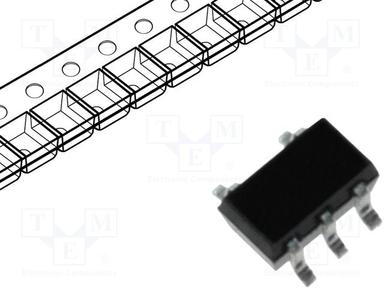

74LVC1G126DBVRG4
Manufacturer
Texas Instruments
Description
Single 1.65-V to 5.5-V buffer with 3-state outputs 5-SOT-23 -40 to 125
Product Attributes
Type
Case/Package
Contact Plating
Height
High Level Output Current
Lead Free
Length
Lifecycle Status
Logic Function
Low Level Output Current
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Bits per Element
Number of Channels
Number of Elements
Number of Gates
Number of Input Lines
Number of Inputs
Number of Output Lines
Number of Outputs
Number of Pins
Packaging
Polarity
Propagation Delay
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Thickness
Turn-On Delay Time
Width
Description
SOT-23
Gold
1.45 mm
-32 mA
Lead Free
2.9 mm
Production (Last Updated: 4 days ago)
Buffer, Inverting
32 mA
ACTIVE (Last Updated: 4 days ago)
125 °C
5.5 V
-40 °C
1.65 V
Surface Mount
1
1
1
1
1
1
1
1
1
5
Tape and Reel
Non-Inverting
9.8 ns
10 µA
No
No SVHC
Compliant
8542390000
1.2 mm
9.8 ns
1.6 mm
