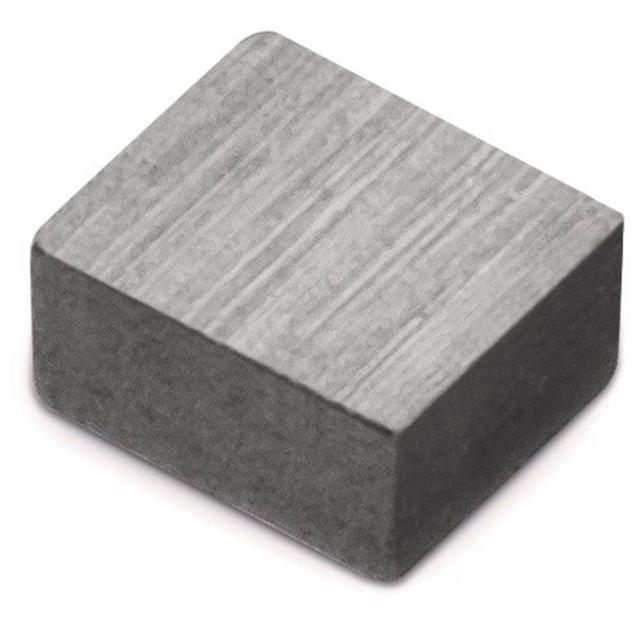

74438357022
Product Attributes
Type
Ambient Temperature Range High
Ambient Temperature Range Low
Current Rating
DC Resistance (DCR)
Height
Inductance
Inductance Tolerance
Length
Max Operating Temperature
Min Operating Temperature
Number of Pins
RMS Current (Irms)
RoHS
Saturation Current
Self Resonant Frequency
Series Resistance
Test Frequency
Tolerance
Width
Description
85 °C
-40 °C
5.2 A
22 mΩ
3 mm
2.2 µH
20 %
4 mm
125 °C
-40 °C
2
5.2 A
Compliant
7 A
35 MHz
26 mΩ
100 kHz
20 %
4 mm
