744232102
Manufacturer
Wurth Elektronik
Description

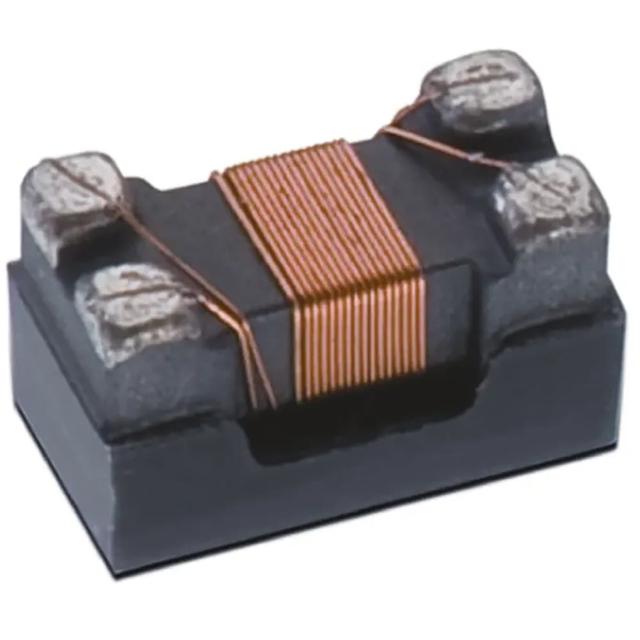

Choke/Filter, Common Mode, WE-CNSW LnFltr1206 1000Ohm 100MHz 230mA | Wurth Elektronik 744232102
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Ambient Temperature Range Low
Case/Package
Core Material
Current
Current Rating
DC Resistance (DCR)
Depth
Frequency
Height
Impedance
Inductance
Lead Free
Length
Max Current Rating
Max DC Current
Max Operating Temperature
Min Operating Temperature
Mount
Number of Lines
Number of Pins
REACH SVHC
Resistance
RoHS
Termination
Test Frequency
Tolerance
Voltage Rating
Voltage Rating (AC)
Voltage Rating (DC)
Weight
Width
Description
85 °C
-40 °C
1206
Ferrite
230 mA
230 mA
1 Ω
1.6 mm
100 MHz
1.8 mm
1 kΩ
1.263 µH
Lead Free
3.2 mm
230 mA
230 mA
125 °C
-40 °C
Surface Mount
2
4
No SVHC
1 Ω
Compliant
SMD/SMT
100 MHz
25 %
50 V
50 V
50 V
39.008944 mg
1.6 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹125.38
Total Price
₹125.38
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹125.38
₹125.38
10
₹119.95
₹1199.53
25
₹119.99
₹2999.72
50
₹112.31
₹5615.30
100
₹106.55
₹10655.28
500
₹100.47
₹50235.35
1000
₹84.47
₹84472.22
