744226
Manufacturer
Wurth Elektronik
Description

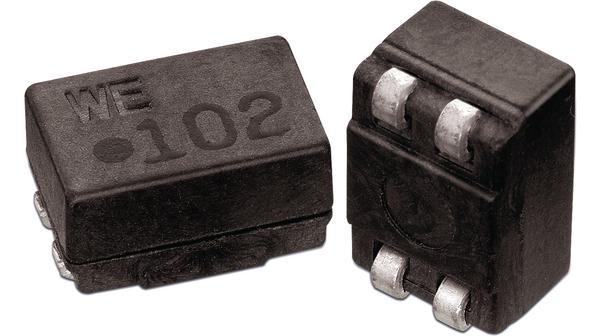

Common Mode Chokes Dual 10uH 920Ohm 1kHz 1.6A 80mOhm DCR SMD T/R
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Ambient Temperature Range Low
Case/Package
Core Material
Current
Current Rating
DC Current
DC Resistance (DCR)
Depth
Height
Impedance
Inductance
Inductance Tolerance
Lead Free
Length
Max DC Current
Max Operating Temperature
Min Operating Temperature
Mount
Number of Lines
Number of Pins
REACH SVHC
Resistance
RoHS
Termination
Test Frequency
Tolerance
Voltage Rating
Voltage Rating (AC)
Voltage Rating (DC)
Weight
Width
Description
85 °C
-40 °C
SMD/SMT
Ferrite
1.6 A
1.6 A
1.6 A
80 mΩ
6.3 mm
5 mm
920 Ω
10 µH
30 %
Lead Free
9.2 mm
1.6 A
125 °C
-40 °C
Surface Mount
2
4
No SVHC
80 mΩ
Compliant
SMD/SMT
1 kHz
30 %
80 V
80 V
80 V
500.992773 mg
6 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹228.52
Total Price
₹228.52
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹228.52
₹228.52
10
₹222.92
₹2229.22
25
₹222.90
₹5572.62
50
₹211.19
₹10559.25
100
₹199.45
₹19944.76
500
₹183.45
₹91724.54
1000
₹168.52
₹168517.63
