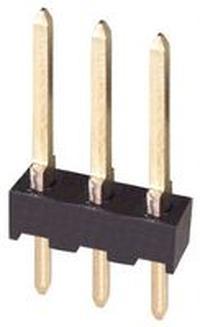

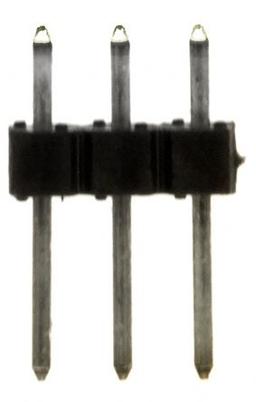

68001-403HLF
Manufacturer
Amphenol Communications Solutions
Description
Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Top Entry Thru-Hole BergStik Bulk
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Gender
Contact Material
Contact Mating Length
Contact Plating
Current Rating
Depth
Flammability Rating
Gender
Housing Color
Housing Material
Insulation Resistance
Lead Length
Lead Pitch
Length
Mating Post Length
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Positions
Number of Rows
Orientation
Pitch
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Termination
Voltage Rating
Description
Black
Male Pin
Male
Bronze
5.842 mm
Tin
3 A
2.41 mm
UL94 V-0
Male
Black
Thermoplastic
5 GΩ
3.05 mm
2.54 mm
7.62 mm
5.84 mm
125 °C
1.5 kV
-65 °C
Through Hole
3
3
3
1
Straight
2.54 mm
No
No SVHC
Compliant
8535908040, 8535908040|8535908040, 8535908040|8535908040|8535908040, 8535908040|8535908040|8535908040|8535908040
Solder
1.5 kV
