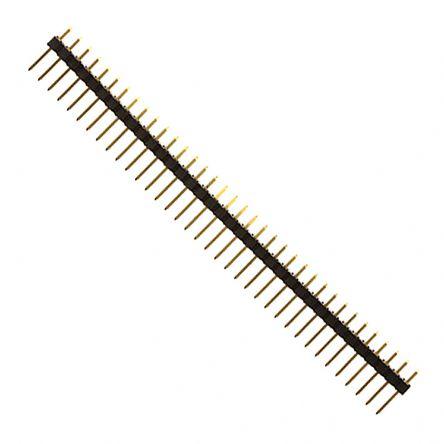

68001-136HLF
Manufacturer
Amphenol Communications Solutions
Description
Conn Unshrouded Header HDR 36 POS 2.54mm Solder ST Top Entry Thru-Hole BergStik Bulk
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Gender
Contact Material
Contact Mating Length
Contact Plating
Current Rating
Depth
Flammability Rating
Gender
Height
Housing Color
Housing Material
Insulation Resistance
Lead Free
Lead Length
Lead Pitch
Length
Mating Post Length
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Orientation
Packaging
Pitch
REACH SVHC
RoHS
Schedule B
Termination
Voltage Rating
Width
Description
Black
Male Pin
Male
Gold, Nickel, Tin
5.842 mm
Gold
3 A
2.41 mm
UL94 V-0
Male
8.73 mm
Black
Thermoplastic
5 GΩ
Lead Free
3.05 mm
2.54 mm
91.44 mm
5.84 mm
125 °C
1.5 kV
-65 °C
Through Hole
36
36
1
Straight
Bulk
2.54 mm
No SVHC
Compliant
8535908040, 8535908040|8535908040|8535908040|8535908040|8535908040|8535908040|8535908040|8535908040|8535908040|8535908040|8535908040|8535908040|8535908040|8535908040|8535908040|8535908040|8535908040|8535908040|8535908040|8535908040|8535908040|8535908040|8535908040|85
Through Hole
1.5 kV
2.41 mm
