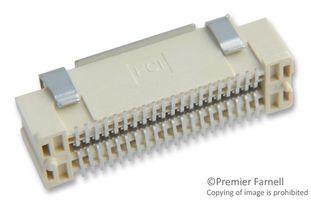

61083-101400LF

Manufacturer

Amphenol ICC / FCI

Description

BergStak 0.80mm Pitch, Mezzanine Connector, Vertical Header, Double Row, 100 Positions.

Datasheet

download datasheetDownload

Product Attributes

Type

Connector Type

Contact Material

Contact Plating

Contact Resistance

Current Rating

Depth

Flammability Rating

Gender

Height

Housing Material

Insulation Material

Insulation Resistance

Lead Free

Lead Pitch

Length

Mated Stacking Heights

Material

Max Operating Temperature

Max Voltage Rating (AC)

Min Operating Temperature

Mount

Number of Contacts

Number of Positions

Number of Rows

Orientation

Pitch

REACH SVHC

RoHS

Row Spacing

Schedule B

Stack Height

Termination

Voltage Rating

Voltage Rating (AC)

Width

Description

Plug

Brass, Copper

Gold

50 mΩ

500 mA

6 mm

UL94 V-0

Male

5 mm

Polymer

Polyester

1 GΩ

Lead Free

800 µm

45.8 mm

13 mm

Liquid Crystal Polymer

125 °C

100 V

-40 °C

Surface Mount

100

100

2

Straight

800 µm

No SVHC

Compliant

2 mm

8536694040, 8536694040|8536694040, 8536694040|8536694040|8536694040, 8536694040|8536694040|8536694040|8536694040

4.7 mm

Solder

100 V

100 V

6 mm

In Stock

Quantity

MOQ : 1

decrement quantity
increment quantity

Per Unit Price

₹511.29

Total Price

₹511.29

delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

₹511.29

₹511.29

10

₹415.97

₹4159.68

25

₹415.97

₹10399.19

50

₹399.96

₹19998.11

100

₹399.97

₹39997.11

500

₹361.31

₹180655.21

1000

₹349.95

₹349954.44
