5104340-1
Manufacturer
TE Connectivity / AMP
Description

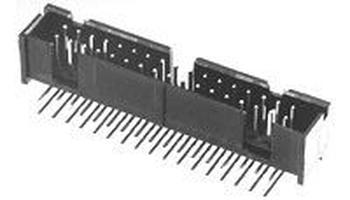

Conn Shrouded Header (4 Sides) HDR 10 POS 2.54mm Solder RA Side Entry Thru-Hole Tube
Datasheet
DownloadProduct Attributes
Type
Circuit Application
Color
Connector System
Connector Type
Contact Current Rating
Contact Gender
Contact Material
Contact Mating Length
Contact Plating
Contact Shape
Current Rating
Depth
ELV
Flammability Rating
Gender
Height
Housing Color
Insulation Resistance
Lead Free
Lead Length
Length
Lifecycle Status
Mating Connector Lock
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Operating Supply Voltage
Orientation
PCB Mounting Orientation
PCB Mount Retention
Pitch
Radiation Hardening
REACH SVHC
RoHS
Row Spacing
Shrouded End Dimension
Termination
Voltage Rating
Description
Signal
Black
Wire-to-Board
Header, Pin, Plug
1 A
Male
Bronze
6.096 mm
Gold, Tin
Square
1 A
12.39 mm
Compliant
UL94 V-0
Male
8.813 mm
Black
5 GΩ
Lead Free
3.18 mm
20.32 mm
Production (Last Updated: 4 days ago)
Without
105 °C
-65 °C
Through Hole
10
10
2
250 V
Right Angle
Right Angle
With
2.54 mm
No
Unknown
Compliant
2.54 mm
3.81 mm
Solder, Through Hole
250 V
In Stock
Quantity
MOQ : 1
Per Unit Price
₹227.63
Total Price
₹227.63
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹227.63
₹227.63
10
₹203.72
₹2037.16
25
₹203.73
₹5093.34
50
₹203.72
₹10185.79
100
₹173.85
₹17384.75
500
₹173.85
₹86925.52
1000
₹142.92
₹142920.23
