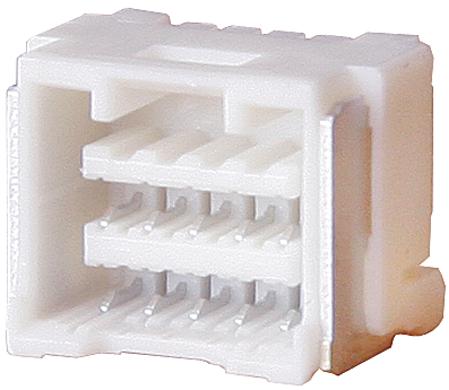

503148-1290
Manufacturer
Molex
Description
Headers & Wire Housings 1.5 W/B Dual RA Rec 12Ckt EmbsTpPkgBeige
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Gender
Contact Material
Contact Plating
Country of Origin
Current Rating
Depth
Fastening Type
Gender
Glow Wire Compliant
Housing Color
Housing Material
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Min Operating Temperature
Mount
Number of Circuits
Number of Contacts
Number of Pins
Number of Positions
Number of Rows
Orientation
Packaging
Pitch
Radiation Hardening
REACH SVHC
RoHS
Termination
Voltage Rating
Description
Beige
Center Strip Contact, Receptacle
Female
Copper
Tin
JP
1 A
9.55 mm
Latch
Receptacle
Non-compliant
Beige
Resin
13.3 mm
Production (Last Updated: 2 years ago)
ACTIVE (Last Updated: 2 years ago)
85 °C
-25 °C
Surface Mount, Through Hole
12
12
12
12
2
Right Angle
Cut Tape
1.5 mm
No
Unknown
Compliant
Solder
100 V
In Stock
Quantity
MOQ : 1
Per Unit Price
₹204.39
Total Price
₹204.39
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹204.39
₹204.39
10
₹168.38
₹1683.82
25
₹168.38
₹4209.54
50
₹168.38
₹8419.08
100
₹147.37
₹14736.69
500
₹147.37
₹73683.44
1000
₹142.95
₹142951.35
