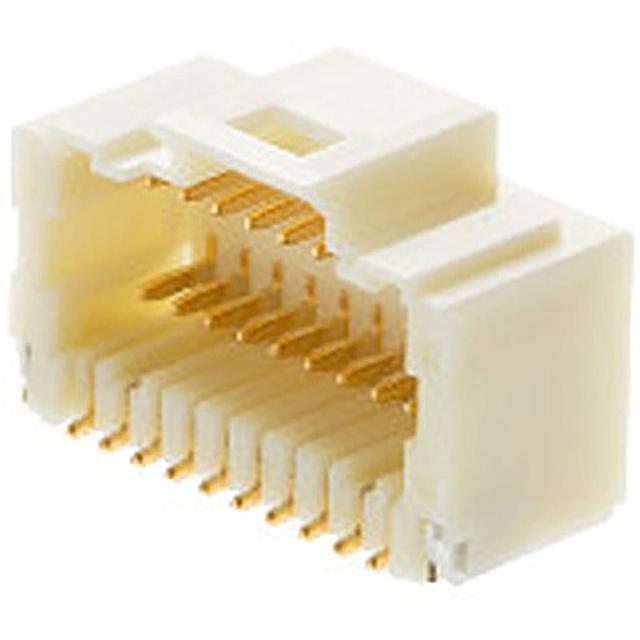

501571-2007
Manufacturer
Molex
Description
Conn Shrouded Header (4 Sides) HDR 20 POS 1mm Solder RA Side Entry SMD Pico-Clasp T/R
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Material
Contact Plating
Country of Origin
Current Rating
Depth
Fastening Type
Gender
Glow Wire Compliant
Height
Housing Color
Housing Material
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Circuits
Number of Contacts
Number of Pins
Number of Positions
Number of Rows
Orientation
Packaging
Pitch
Plating
Radiation Hardening
REACH SVHC
RoHS
Row Spacing
Termination
Voltage Rating
Voltage Rating (AC)
Description
Natural
Male Pin
Bronze, Gold
Gold
MY
1 A
6.5 mm
Latch
Male
Non-compliant
8.45 mm
Natural
Thermoplastic
Lead Free
13 mm
Production (Last Updated: 2 years ago)
ACTIVE (Last Updated: 2 years ago)
85 °C
50 V
50 V
-40 °C
Surface Mount
20
20
20
20
2
Right Angle
Cut Tape
1 mm
Gold
No
Unknown
Compliant
2.667 mm
Solder
50 V
50 V
In Stock
Quantity
MOQ : 1
Per Unit Price
₹152.05
Total Price
₹152.05
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹152.05
₹152.05
10
₹124.04
₹1240.43
25
₹124.04
₹3101.09
50
₹124.04
₹6202.17
100
₹101.12
₹10111.98
500
₹101.12
₹50560.80
1000
₹84.09
₹84088.09
