5-87587-9
Manufacturer
TE Connectivity / AMP
Description

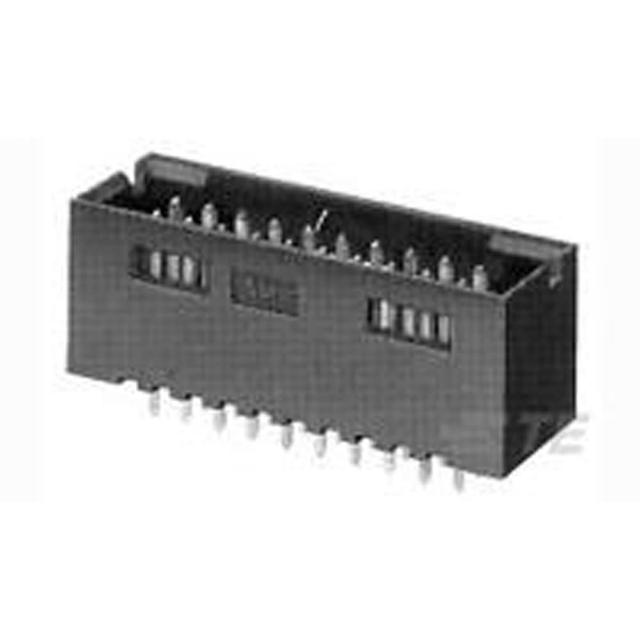

Conn Shrouded Header HDR 26 POS 2.54mm Solder ST Thru-Hole Frame
Datasheet
DownloadProduct Attributes
Type
Approvals
Color
Connector Type
Contact Current Rating
Contact Gender
Contact Material
Contact Mating Length
Contact Plating
Contact Shape
Contact Style
Current Rating
Depth
ELV
Fastening Type
Flammability Rating
High Speed Serial Data Connector
High Temperature Housing
Housing Color
Housing Material
Insulation Resistance
Keyed
Lead Length
Length
Lifecycle Status
Mating Post Length
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Orientation
PCB Mounting Orientation
PCB Thickness
Pitch
Radiation Hardening
RoHS
Row Spacing
Schedule B
Shrouded End Dimension
Termination
Description
CSA
Black
Header, Pin, Plug
3 A
Male
Bronze
8.0772 mm
Tin
Square
Pin
3 A
10.16 mm
Compliant
Detent
UL94 V-0
No
No
Black
Nylon
5 GΩ
No
3.175 mm
40.13 mm
Production (Last Updated: 3 months ago)
8.08 mm
105 °C
-65 °C
Through Hole
26
26
2
Vertical
Vertical
1.397 mm
2.54 mm
No
Compliant
2.54 mm
8536694040|8536694040|8536694040|8536694040|8536694040
3.81 mm
Through Hole
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
