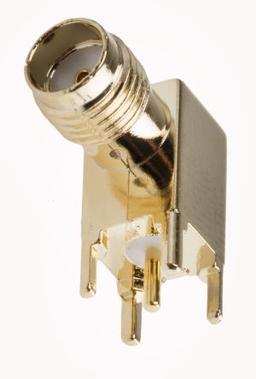

5-1814400-1
Manufacturer
TE Connectivity / AMP
Description
Conn SMA RCP 0Hz to 3GHz 50Ohm Solder RA Thru-Hole Gold Over Nickel Over Copper Bag
Datasheet
DownloadProduct Attributes
Type
Body Material
Body Plating
Case/Package
Connector Type
Contact Material
Contact Plating
Depth
Dielectric Material
Fastening Type
Frequency
Gender
Height
Impedance
Insulation Material
Insulation Resistance
Length
Lifecycle Status
Max Frequency
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Orientation
Outside Diameter
Polarity
Radiation Hardening
REACH SVHC
RoHS
Sealable
Tail Length
Termination
Wire/Cable Type
Description
Zinc
Gold
SMA
SMA
Copper
Gold
14.2 mm
PTFE
Threaded
3 GHz
Female
9.63 mm
50 Ω
Polytetrafluoroethylene
5 GΩ
14.1986 mm
Production (Last Updated: 2 years ago)
3 GHz
165 °C
-67 °C
Through Hole
1
1
Right Angle
6.35 mm
Normal, Standard
No
No SVHC
Compliant
No
3.8862 mm
Solder, Through Hole
Coaxial
