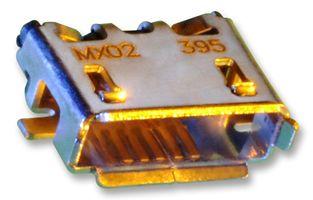

47590-0001
Manufacturer
Molex
Description
RightAngle SMT TypeABVersion 2.0 Micro USB Conn Skt; 30Vac; 1.8A 47650 MICRO-USB
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Material
Contact Plating
Contact Resistance
Country of Origin
Current Rating
Depth
Gender
Height
Housing Material
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Circuits
Number of Contacts
Number of Pins
Number of Ports
Number of Rows
Number of Terminals
Orientation
Packaging
Pitch
Plating
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Termination
USB Standard
Voltage Rating
Voltage Rating (AC)
Weight
Width
Description
Black
Receptacle, USB
Copper
Gold
40 mΩ
US
1.8 A
5.8 mm
Female
3.1 mm
Polymer
8.65 mm
Production (Last Updated: 2 years ago)
ACTIVE (Last Updated: 2 years ago)
85 °C
100 V
-30 °C
Surface Mount
5
5
5
1
1
5
Right Angle
Tape & Reel
650 µm
Gold
No
Unknown
Compliant
8536695050, 8536695050|8536695050, 8536695050|8536695050|8536695050, 8536695050|8536695050|8536695050|8536695050
Solder
USB 2.0
30 V
30 V
9.071847 g
6.35 mm
