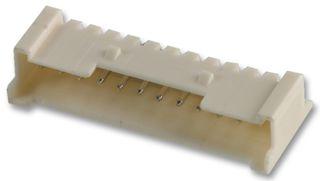

35363-1260

Manufacturer

Molex

Description

2.00mm Pitch Sherlock Wire-to-Board Header, Right-Angle, with Positive Lock, 12 Circuits

Datasheet

download datasheetDownload

Product Attributes

Type

Color

Connector Type

Contact Material

Contact Mating Length

Contact Plating

Contact Resistance

Country of Origin

Current Rating

Fastening Type

Flammability Rating

Gender

Glow Wire Compliant

Halogen Free

Housing Color

Housing Material

Insulation Resistance

Lead Free

Lead Pitch

Lifecycle Status

Manufacturer Lifecycle Status

Max Current Rating

Max Operating Temperature

Min Operating Temperature

Mount

Number of Circuits

Number of Contacts

Number of Positions

Number of Rows

Orientation

Pitch

Plating

RoHS

Termination

Voltage Rating

Voltage Rating (AC)

Voltage Rating (DC)

Width

Description

Natural

Male Pin

Brass

3.683 mm

Tin

20 mΩ

KR

2 A

Ramp

UL94 V-0

Male

Non-compliant

Low Halogen

Natural

Nylon

1 GΩ

Lead Free

2 mm

Production (Last Updated: 2 years ago)

ACTIVE (Last Updated: 2 years ago)

2 A

105 °C

-40 °C

Through Hole

12

12

12

1

Right Angle

2 mm

Tin

Compliant

Solder

125 V

125 V

125 V

28.3 mm
