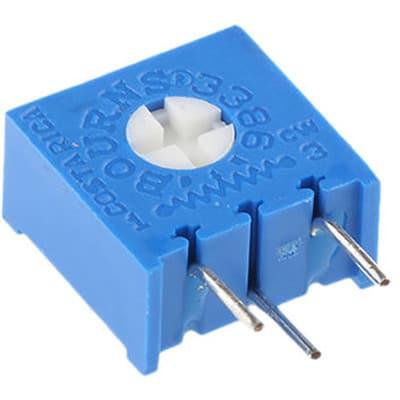

3386V-1-104LF

Manufacturer

Bourns

Description

3/8" Sq, Thru-Hole, TRIMMER, 100 Kilohms, Cermet, Single Turn | Bourns 3386V-1-104LF

Datasheet

download datasheetDownload

Product Attributes

Type

China RoHS

Composition

Depth

Height

Lead Diameter

Lead Length

Lifecycle Status

Max Operating Temperature

Max Power Dissipation

Military Standard

Min Operating Temperature

Mount

Number of Terminals

Number of Turns

Power Dissipation

Power Rating

Radiation Hardening

REACH SVHC

Resistance

RoHS

Schedule B

Temperature Coefficient

Termination

Tolerance

Voltage Rating

Voltage Rating (AC)

Voltage Rating (DC)

Weight

Width

Description

Non-Compliant

Cermet

9.53 mm

9.53 mm

510 µm

5.97 mm

Production (Last Updated: 7 months ago)

125 °C

500 mW

Not

-55 °C

Through Hole

3

1

500 mW

500 mW

No

Yes

100 kΩ

Compliant

8533400080, 8533400080|8533400080|8533400080|8533400080|8533400080

100 ppm/°C

Pin

10 %

300 V

300 V

300 V

850.485694 mg

4.83 mm

In Stock

Quantity

MOQ : 1

decrement quantity
increment quantity

Per Unit Price

₹217.85

Total Price

₹217.85

delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

₹217.85

₹217.85

10

₹183.44

₹1834.42

25

₹183.42

₹4585.60

50

₹183.46

₹9172.99

100

₹114.13

₹11412.88
