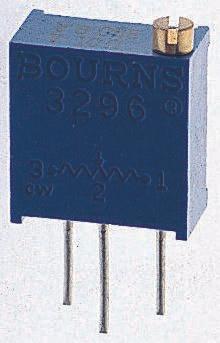

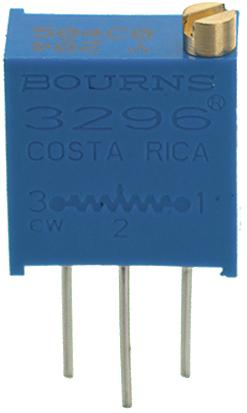

3296Y-1-105LF
Manufacturer
Bourns
Description
Cermet trimmer potentiometer, 25 turns, 1 M, 0.5 W, THT, on top, 3296Y-1-105LF
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Color
Composition
Contact Plating
Depth
Height
Lead Diameter
Lead Free
Lead Length
Length
Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Military Standard
Min Operating Temperature
Mount
Number of Terminals
Number of Turns
Power Dissipation
Power Rating
Radiation Hardening
REACH SVHC
Resistance
RoHS
Schedule B
Taper
Temperature Coefficient
Termination
Tolerance
Voltage Rating (AC)
Voltage Rating (DC)
Weight
Width
Working Voltage
Description
Radial
Non-Compliant
Blue
Cermet
Tin
4.83 mm
10.03 mm
510 µm
Lead Free
6.4 mm
9.53 mm
Production (Last Updated: 7 months ago)
125 °C
500 mW
Not
-55 °C
PCB, Panel, Through Hole
3
25
500 mW
500 mW
No
No SVHC
1 MΩ
Compliant
8533400080, 8533400080|8533400080|8533400080|8533400080|8533400080
Linear
100 ppm/°C
Pin
10 %
300 V
300 V
850.485694 mg
4.83 mm
300 V
In Stock
Quantity
MOQ : 1
Per Unit Price
₹266.76
Total Price
₹266.76
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹266.76
₹266.76
10
₹214.30
₹2142.97
25
₹196.30
₹4907.49
