320572
Manufacturer
TE Connectivity
Description

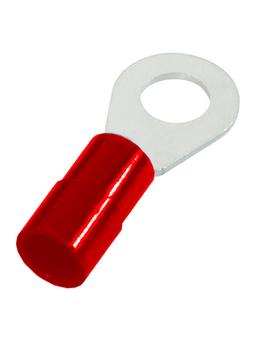

Terminal, Ring Tongue; RING-041; Copper; 22-16 AWG; 300 VAC; 5/16 (M8); PIDG
Datasheet
DownloadProduct Attributes
Type
Approvals
Body Material
Body Plating
Case/Package
China RoHS
Color
Contact Gender
Contact Material
Contact Plating
Depth
Diameter
ELV
Gender
Government Qualified
Heavy Duty
Insulated Wire Support
Insulation
Insulation Diameter
Insulation Material
Length
Lifecycle Status
Manufacturer Lifecycle Status
Material
Material Thickness
Max Operating Temperature
Min Operating Temperature
Mount
Number of Contacts
Number of Holes
Orientation
Packaging
Radiation Hardening
REACH SVHC
RoHS
Stud Size
Termination
Thickness
Thread Size
Tongue Thickness
Voltage Rating
Voltage Rating (AC)
Width
Wire/Cable Diameter
Wire/Cable Gauge
Wire Gauge (Max)
Wire Gauge (Min)
Description
UL
Copper
Tin
300
Compliant
Red
Female
Copper
Tin
11.91 mm
8.33 mm
Compliant
Female
Yes
No
Yes
Insulated
3.18 mm
Nylon
27.38 mm
Production (Last Updated: 1 week ago)
ACTIVE (Last Updated: 1 week ago)
Copper
790 µm
105 °C
-55 °C
Stud
1
1
Straight
Bulk
No
Yes
Compliant
M8
Circular
787.4 µm
M8
840 µm
300 V
300 V
11.9 mm
3.56 mm
16 AWG
22 AWG
16 AWG
In Stock
Quantity
MOQ : 2
Per Unit Price
₹66.69
Total Price
₹133.38
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹133.38
₹133.38
10
₹46.59
₹465.94
25
₹46.61
₹1165.30
50
₹46.59
₹2329.70
100
₹40.42
₹4042.30
500
₹38.03
₹19015.54
1000
₹37.97
₹37970.62
