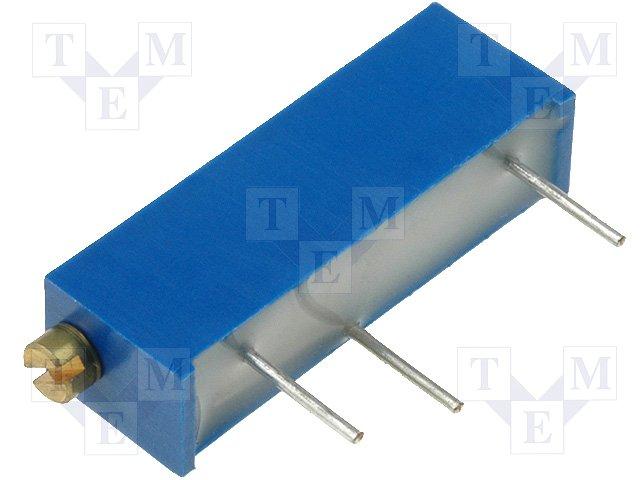

3006P-1-501LF

Manufacturer

Bourns

Description

Cermet trimmer potentiometer, 15 turns, 500 , 0.75 W, THT, lateral, 3006P-1-501LF

Datasheet

download datasheetDownload

Product Attributes

Type

Color

Composition

Depth

Height

Lead Diameter

Lead Length

Length

Lifecycle Status

Max Operating Temperature

Max Power Dissipation

Military Standard

Min Operating Temperature

Mount

Number of Terminals

Number of Turns

Pitch

Power Dissipation

Power Rating

Radiation Hardening

REACH SVHC

Resistance

RoHS

Schedule B

Taper

Temperature Coefficient

Termination

Thickness

Tolerance

Type

Voltage Rating (DC)

Weight

Width

Working Voltage

Description

Blue

Cermet

4.83 mm

6.35 mm

510 µm

5.33 mm

20.57 mm

Production (Last Updated: 7 months ago)

125 °C

750 mW

Not

-55 °C

PCB, Panel, Through Hole

3

15

2.5 mm

750 mW

750 mW

No

No SVHC

500 Ω

Compliant

8533400080, 8533400080|8533400080, 8533400080|8533400080|8533400080, 8533400080|8533400080|8533400080|8533400080

Linear

100 ppm/°C

Pin

5.59 mm

10 %

Potentiometer

400 V

1.133981 g

4.83 mm

400 V

In Stock

Quantity

MOQ : 1

decrement quantity
increment quantity

Per Unit Price

₹231.19

Total Price

₹231.19

delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

₹231.19

₹231.19

10

₹156.77

₹1567.66

25

₹156.78

₹3919.59

50

₹161.18

₹8058.82

100

₹126.92

₹12692.44

500

₹110.92

₹55461.18

1000

₹120.42

₹120418.13
