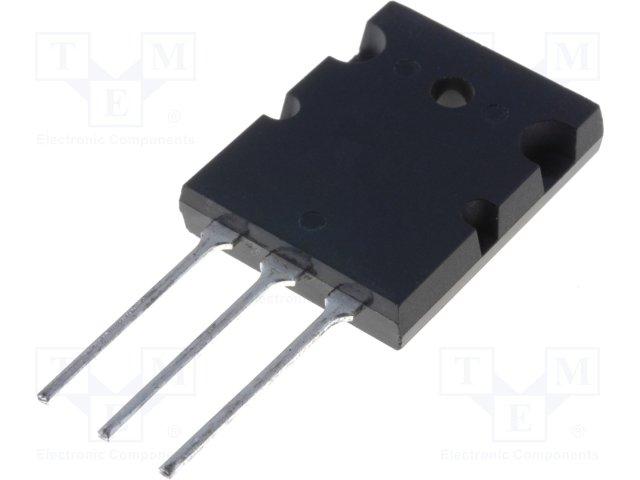

2SA1943-O(Q)
Manufacturer
Toshiba
Description
Bipolar (BJT) Single Transistor, PNP, 230 V, 15 A, 150 W, TO-3PL, Through Hole
Datasheet
DownloadProduct Attributes
Type
Collector Base Voltage (VCBO)
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Contact Plating
Current Rating
Element Configuration
Emitter Base Voltage (VEBO)
Frequency
Gain Bandwidth Product
Height
hFE Min
Lead Free
Length
Max Collector Current
Max Frequency
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Packaging
Polarity
Power Dissipation
Radiation Hardening
RoHS
Schedule B
Transition Frequency
Voltage Rating (DC)
Width
Description
230 V
230 V
-3 V
230 V
Copper, Silver, Tin
-15 A
Single
5 V
30 MHz
30 MHz
26 mm
80
Lead Free
20.5 mm
15 A
30 MHz
150 °C
150 W
-55 °C
Through Hole
1
3
Bulk
PNP
150 W
No
Compliant
8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|85
30 MHz
-230 V
5.2 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹292.81
Total Price
₹292.81
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹292.81
₹292.81
10
₹171.75
₹1717.46
25
₹171.75
₹4293.64
50
₹171.75
₹8587.29
100
₹158.89
₹15889.11
500
₹140.59
₹70297.48
1000
₹130.35
₹130347.83
